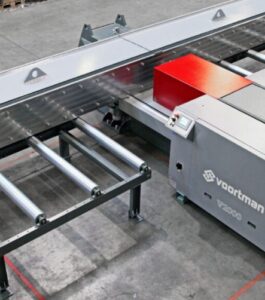

Voortman V2000 Beam Cambering Machines



REPEATABLE MEMORY POSITIONS
The V2000 has two moveable reaction points that include an electric switch to indicate both points are touching the material. The PLC control can save the data to repeat the same camber on subsequent profiles, significantly speeding up processing times. The reaction point position can be easily adjusted by releasing a handle and doesn’t require screwing/unscrewing to move.

MONITOR RESULTS IN REAL TIME
The V2000 integrated PLC system has a touch panel to indicate the current machine status and give full insight to the cambering process. By determining the zero-reference and saving the neutral and work stroke, the PLC is able to make a fully automatic stroke. The combination of automation and feedback gives you a clear look in on the process with minimal manual operation intervention required.

ACCURACY AND QUALITY
The V2000 has an integrated measurement system that determines the cambered depth. It automatically corrects when the cambered depth isn’t met, significantly increasing the accuracy of cambering and processing quality.



Specifications

---

		V2000-200	V2000-400
Operating range	inch	2 – 33-1/2	2 – 41-1/2
Capacity	tons	220	440
Hydraulic motor	HP	25	50
Profile		HEB800	HEM1000
	UB	914 x 305 x 253	914 x 419 x 343
	W	36 x 12 x 160	40 x 12 x 235
Reaction beam	feet	26-1/4	26-1/4
Weight base frame	lbs.	16,500	23,150
Weight reaction beam	lbs.	16,500	26,450
Working height	inch	33-1/3	33-1/3



Main Benefits

---

PRODUCTIVITY:  Smart cambering.

AUTOMATION:  Accurate, automated positioning.

VERSATILITY:  Beam straightening

PRODUCTIVITY:  Hydrfaulic

AUTOMATION:

USER-FRIENDLY:

PRODUCTIVITY:

HIGH QUALITY:



INTEGRATION IN YOUR WORKSHOP
