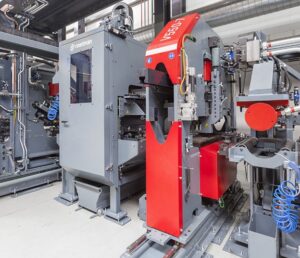

The Voortman V550-7 CNC flat and angle processing machine is built for speed, reliability and versatility in punching, shearing and drilling flat and angle profiles. Capabilities include both horizontal and vertical punching, carbide drilling, thread tapping, countersinking and miter shearing up to 45° in either direction.
Specifications
| Flat steel | inch | 2 x 3/16 – 18-5/8 x 1 |
| Flat steel (45º cut) | inch | 12-1/2 x 1 |
| Angle steel | inch | 2 x 3/16 – 8 x 5/8 |
| Marking | Hydraulic numbering (standard) and/or milling (optional tool) | |
| Vertical punches | 7 punches and 13 dies | |
| Vertical punch capacity | tons | 120 |
| Horizontal punches | 1 | |
| Horizontal punch capacity | tons | 77 |
| Drilling units | 1 vertical (option) | 1 |
| Drill diameter | inch | 3/16 – 1-9/16 |
| Thread tapping | M6 – M30 | |
| Tool changer | 1 x 5 | |
| Drill holder | SK40 | |
| Nominal drilling power | Nm | 200 |
| Speed | rpm (stepless) | 0 – 4.500 |
| Shear | flat and angle (option) | |
| Shear capacity | tons | 270 |
THE MACHINE IN PRACTICE
Main Benefits
| High speed processing – Fastest machine in its range with minimal waiting times. |
| Automatic die selection – High speed punching with hydraulically driven carousel. |
| Additional hydraulic numbering – 36-character numbering boosts the production speed. |
| Active buffer management – Handle material up to 15 m / 50′ during processing. |
| Rapidly process various stock lengths. |
| Optimized angle line processing – 3 wide punch positions for minimum to change. |
| Project based processing – Nest full length material for use in multiple projects. |
| High quality processing. |
| New hydraulic system – Modular design eliminates transmitted vibrations. |
| Revolutionary drill spindle – Automatic tool length measuring by laser. |
| Easy tool changing – Selected punches take position for optimal approach. |
| Width measuring – Ensures infeed profiles correspond to the loaded batch. |
| Safe working environment. |
Features & Processes
| Punching |
| Shearing |
| Drilling, tapping, sinking |
| Numbering |
| Centerpoint marking |
| Marking by milling |
| VACAM Machine |
| VACAM in the office |
| VACAD Editor |
| Easy operation |
