HIGH STABILITY SAWING AND LONG LIFETIME

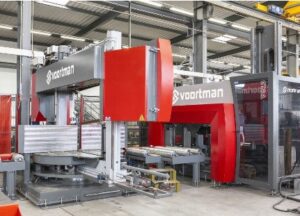

VB Range bandsaw machines have a welded base frame for maximum stability. This ensure that the saw always has the desired tension and doesn’t deviate from the intended saw line. The machine can process at a consistent, higher pressure supported by the robust frame.
Several features included in the machine extend the lifetime of bandsaw blades. A swarf brush removes chips from pockets in the saw blade and supports maximum saw band speeds for the best results. The VB Range also has a maximum force limit ensuring the saw always pushes with optimal force for exact cutting functionality.
COMPLETE AUTOMATION, NO MATTER HOW SMALL THE PRODUCT
The VB Range is capable of autonomous production when even the smallest products are being produced. Clean, small cuts can be removed with the Short Product Removal System (SPRS), while profiles weighing many tons or outputting at long lengths can easily be sorted onto different sections of roller conveyors and cross transports at the outfeed. The flexibility and automation allows the operator’s role to focus on loading and unloading the system, saving valuable time and labor costs.
Specifications
| VB1050 | VB1250 | ||
| Operating range 0° | inch | 20 x 44 | 24 x 50 |
| Operating range 15° | inch | 20 x 41-23/32 | 24 x 47-1/4 |
| Operating range 30° | inch | 20 x 36-13/32 | 24 x 39-13/32 |
| Operating range 45° | inch | 20 x 28 | 24 x 33-1/2 |
| Operating range 60° | inch | 20 x 18-1/2 | 24 x 20 |
| Fast Approach speed | f/min | 20 | 20 |
| Saw band drive | HP | 10 | 15 |
| Saw band speed | f/min | 130 – 400 | 130 – 400 |
| Saw band size | inch | 2-1/8 x 1/16 | 2-5/8 x 1/16 |
| Saw band inclination | 5° | 5° | |
| Machine weight | lbs. | 18,750 | 22,000 |
Main Benefits
| AUTOMATION: Moveable sawing table – blade always aligned with sawing area. |
| AUTOMATION: Programmable rotation for miter cuts. |
| PRODUCTIVITY: Short Piece Removal System (SPRS). |
| PRODUCTIVITY: Height detection laser. |
| HIGH QUALITY: Optimal blade cooling for extended lifetime. |
| PRODUCTIVITY: Automatic in – & outfeed. |
| HIGH QUALITY: Saw band projection light for accurate positioning. |
| VERSATILITY: Choice of measurement system. |
Features and Processes
| Measuring rolls. |
| Gripper truck measuring and transportation system. |
| Full stop measuring system. |
| Bundle stop and bundle clamp. |
| Sawing various applications. |
| Fully automatic profile transportation. |
| Active buffer management. |
| Automatic material handling. |
| Easy operation. |
| VACAM Machine. |
| VACAM in the office. |
| VACAD Editor. |
