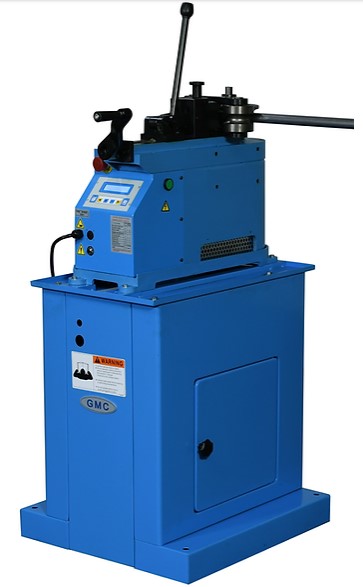

GMC DB-60A, max 2” tube / 1-1/2” pipe, 1-1/2HP, 220V,1 phase
Standard Features
- Taiwan Machine
- ISO 9001 certified
- This easy to use hydraulic tube draw bender has an incredible capacity of 2” tube with .12” wall thickness and 1-1/2” schedule# 40 pipe
- 1-1/2 HP Heavy Duty AC main motor, 220V, 1 phase
- LED degree indicator with automatic stop programming, to get as true reading of bending degree.
- 50 jobs memory, each job program contains 9 steps
- Quick tooling changes
- With deluxe stand
- One year warranty for parts
Specifications
| Capacity:
Minimum CLR Minimum OD Solid Rod, mild steel Round Tube, mild steel (wall thickness) Round Pipe, mild steel, schedule 40 Round Tube, SS steel (wall thickness) Round Pipe, SS steel, schedule 40 Aluminum round Tube (wall thickness) |
1/2” 1/4” 1” 2” (.125”) 1-1/2” 1-1/2”(.125”) 1-1/4” 2” (3/16”) |
| Maximum centerline Radius | 6-1/2” CRL |
| LED programming | 50 job memory |
| Main motor | 1.5HP, 220V,1phase |
| Weight | 327 LBS |
| Machine dimensions, LxWxH | 27” x 9” x 51” |
-
Optional Equipment
Each Die Set includes: 2 rolls, 1 former, and 1 ring
1” Tube die set # DB-60A-1T
1-1/4” Tube die set # DB-60A-114T
1-1/2” Tube die set # DB-60A-112T
2” Tube die set # DB-60A-2T
1” Pipe die set # DB-60A-1P
1-1/4” Pipe die set # DB-60A-114P
1-1/2” Pipe die set # DB-60A-112P
Contact us today with requirements and we can provide a quote.
