Item #
|
Volume
|
Tub Length (lined)
|
Tub Diameter (lined)
|
Tub Top Open (lined)
|
Max Load
|
Horse Power
|
|
VT-10SS
|
1 cu. ft.
|
12 in.
|
14 in.
|
10 3/4 in
|
300 lb
|
1 hp
|
|
VT-10DS
|
1 cu. ft.
|
12 in.
|
14 in.
|
10 3/4 in
|
400 lb
|
1 hp
|
|
VT-20SS
|
2 cu. ft.
|
24 in.
|
14 in.
|
10 3/4 in
|
600 lb
|
1 1/2 hp
|
|
VT-20DS
|
2 cu. ft.
|
24 in.
|
14 in.
|
10 3/4 in
|
800 lb
|
2 hp
|
|
VT-30SS
|
3 cu. ft.
|
36 in.
|
14 in.
|
10 3/4 in
|
900 lb
|
2 hp
|
|
VT-30DS
|
3 cu. ft.
|
36 in.
|
14 in.
|
10 3/4 in
|
1200 lb
|
2 hp
|

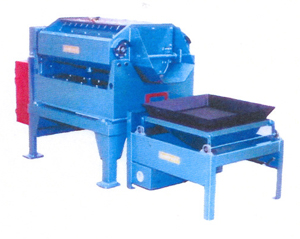

Rubber mount vibratory deburring and burnishing machines offer the ultimate in production mass finishing. In our dual shaft machines, a true round orbit is achieved, by both shafts working in the same direction at all times. A fixed 1750 vibrations per minute is standard on all tub type vibratory deburring machines. As an option our “ELECTRONIC” variable speed is available for added control. The dual shaft machines have a load capacity of 400# per cubic foot while the single shaft machine can drive 300#. A full opening door allows for fast total evacuation of the finishing chamber, resulting in 100% part removal at all times by observation. The machine liner and end plates can easily be replaced in the field. This eliminates the necessity of disassembling the unit and returning the tub to the manufacturer for reline.
 |
 |
